Touchless Car Wash Systems Europe Makine systems

Touchless washing for wrapped, matte and new paint

Europe Makine lists the ACROBAT 2X for wrapped, matte and freshly finished vehicles, and for liveries that must not be touched. It cleans with pulsating high-pressure water and chemical foam.

Talk to Europe Makine

Sheet
04 / 04
Subject
Wrapped and matte vehicles
Supplier
europemakine.com

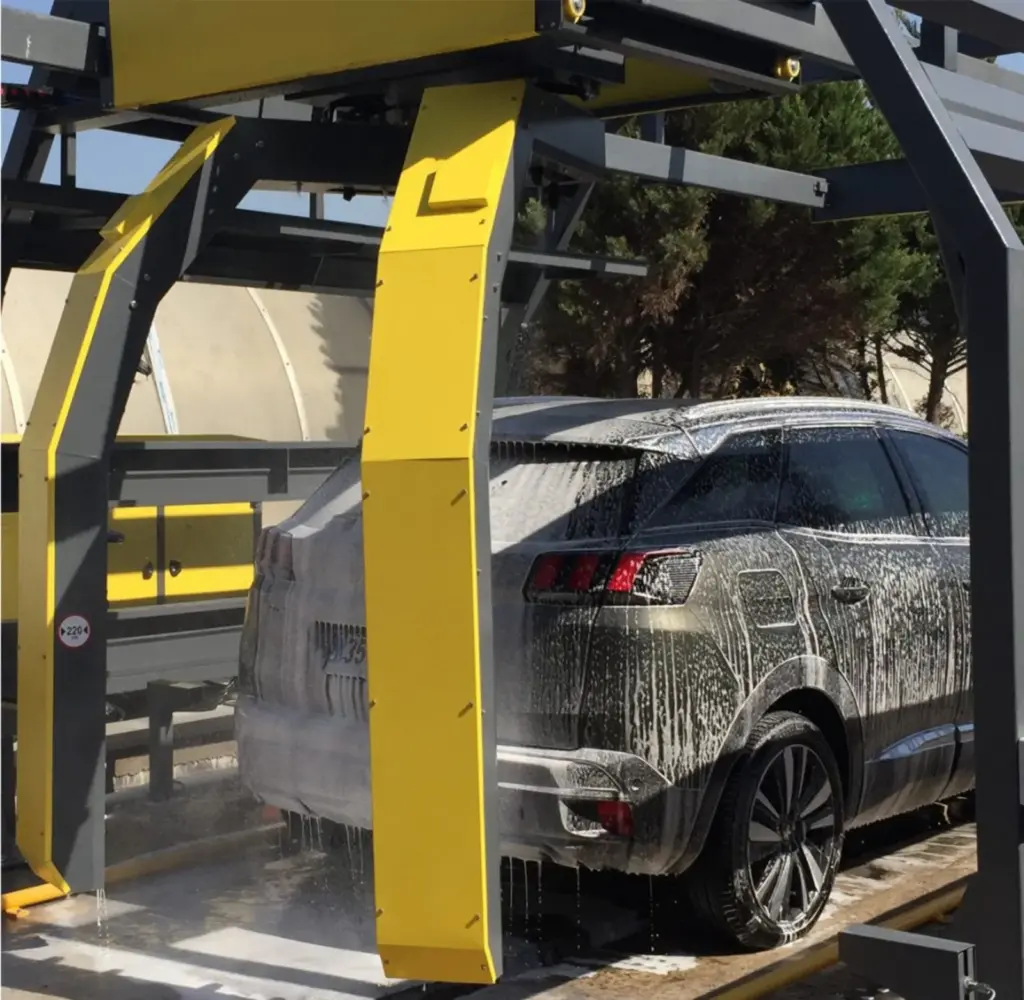

Dark SUV covered in white foam, standing under the grey and yellow arms of a rollover wash

Why finish-sensitive vehicles go touchless

A wrapped or liveried vehicle that must not be touched needs a wash that reaches every panel without contact. The ACROBAT 2X does this with two arms that move on six axes, read the vehicle profile and clean the front, back, sides and top.

The wash uses chemical foam at 20-30 gr per vehicle and water from a 100 or 200 bar pump, sent through nozzles that vibrate and pulse. A pressure adjustment valve sets the force. The foam spraying and high-pressure systems have 3D capabilities, so they follow the vehicle shape.

Drying is part of the same machine. The ACROBAT 2X can wash and dry, with 33 kW installed for drying.

Inverters control every movement of the arms, with speed options, and the machine offers various washing programs. Every metal part of the frame is hot-dip galvanized and finished with electrostatic paint, and the machine carries a 12-month warranty with service from Greenacres, Florida.

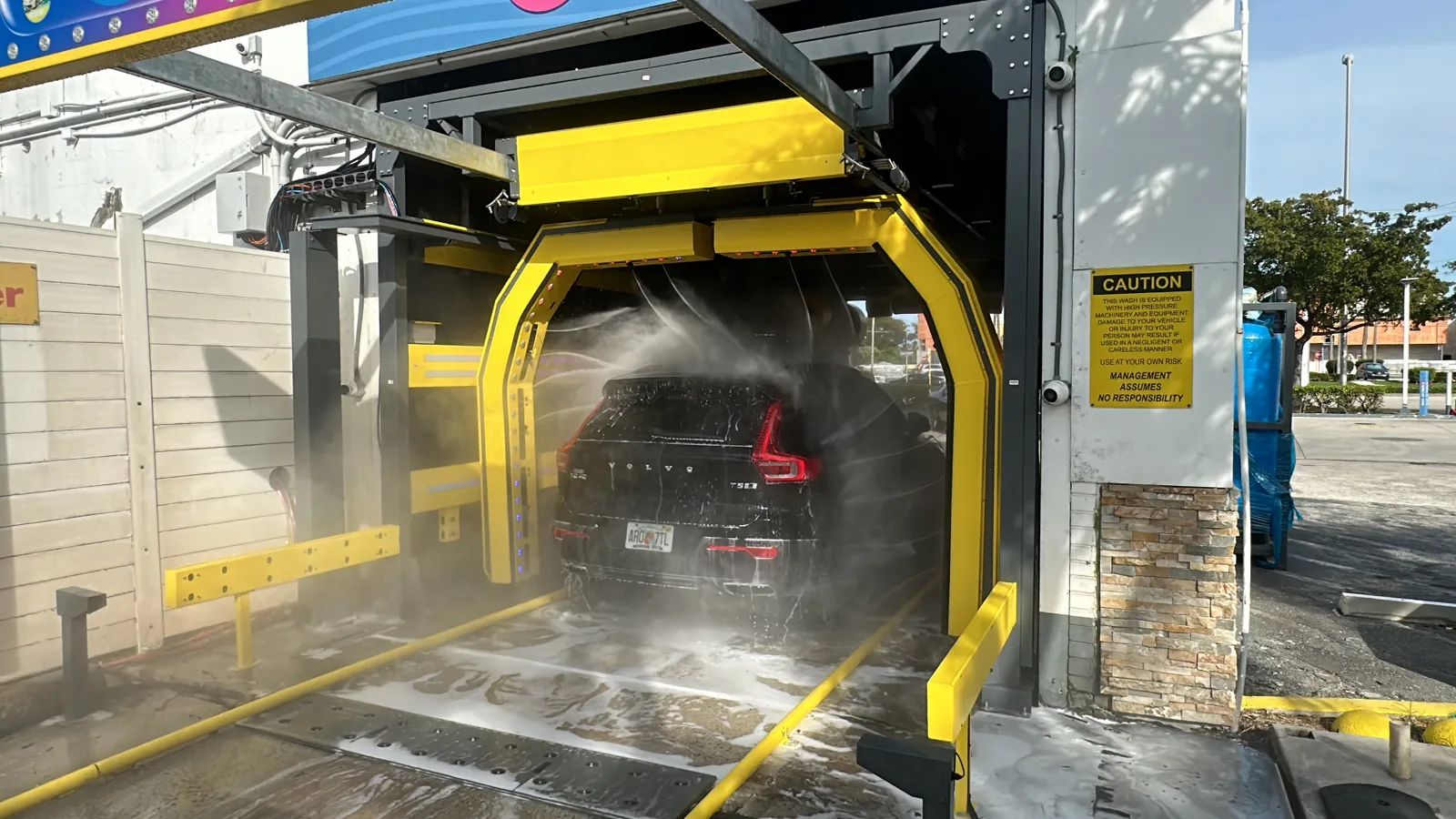

Water spraying from two rollover arms over a black SUV in an open-sided wash bay
Fig. 1 ACROBAT 2X arms washing an SUV in an outdoor bay.

Vehicle envelope and chemistry

Max washing height 2.20 m
Max washing width 2.20 m
Water pump pressure 100 / 200 bar
Chemical foam 20-30 gr/vehicle
Wax 20 gr/vehicle
Brushes None

Source: europemakine.com/systems/acrobat-2x/

Larger liveried vehicles

Vehicles taller or wider than 2.20 m need a bigger machine. For buses, coaches, rigid trucks, vans and trailers, Europe Makine points to the SUNRISE gantry, which washes to 4.20 m high and 2.85 m wide on the W4000.

SUNRISE takes an optional brushless high-pressure Hydrowash for liveried vehicles. Its water robots work at 20 and 30 bar, sense the size of the vehicle, soften dirt with chemicals first and reach indented and protruding surfaces.

The SUNRISE W4700 is the taller machine, for double-deck coaches and high-cube trailers. A fleet that runs liveried cars and liveried coaches can be quoted for both machines in one proforma request to Europe Makine.

Matching the machine to the fleet

  1. Measure the tallest and widest vehicle

    Vehicles up to 2.20 m high and 2.20 m wide fit the ACROBAT 2X wash envelope.

  2. Check the finishes

    Wraps, matte paint, fresh paint and liveries that must not be touched are the finishes Europe Makine lists for the ACROBAT 2X.

  3. Choose the pump pressure

    The ACROBAT 2X is built with a 100 or 200 bar water pump.

  4. Size heavier vehicles separately

    Buses, coaches, trucks and trailers go to SUNRISE, with the brushless Hydrowash option for liveried bodies.

Questions and answers

Which finishes is the ACROBAT 2X listed for?
Wrapped, matte and freshly finished vehicles, and liveries that must not be touched.
Can the ACROBAT 2X wash a van?
Yes, if the van fits within 2.20 m high and 2.20 m wide. For larger vans, Europe Makine points to SUNRISE, which it lists for buses, coaches, rigid trucks, vans and trailers.
Does the ACROBAT 2X apply wax?
Yes. Published wax use is 20 gr per vehicle, alongside 20-30 gr of chemical foam.
Is there a brushless option for liveried coaches?
Yes. The SUNRISE gantry takes an optional Hydrowash: brushless high-pressure water robots at 20 and 30 bar, offered for liveried vehicles.

Machines for finish-sensitive vehicles

Quote a wash for wrapped and liveried vehicles

Europe Makine prices the ACROBAT 2X and the SUNRISE gantry by proforma quotation, at no charge.

Talk to Europe Makine europemakine.com/contact/
