ACROBAT 2X touchless car wash specifications
These are the figures Europe Makine publishes for the ACROBAT 2X. They cover the wash envelope, the machine frame, the utilities it draws and what it uses per vehicle.
- Sheet
- 02 / 04
- Subject
- ACROBAT 2X specifications
- Supplier
- europemakine.com
Wash envelope and frame
| Max washing height | 2.20 m |
|---|---|
| Max washing width | 2.20 m |
| Max machine width | 4.20 m |
| Max machine height | 3.20 m |
| Plant length | 6.5-15 m, specified for each site |
| Arm movement | 6 axes |
| Brushes | None |
Reading the envelope figures
The washing figures set the largest vehicle the arms can treat: 2.20 m high and 2.20 m wide. The frame figures set the space the machine itself takes up: 4.20 m wide and 3.20 m high at most.
Plant length is a range, from 6.5 to 15 m, because Europe Makine specifies it for each site. The ACROBAT 2X is modular, which is how one machine fits bays of different lengths.
The arms move on six axes. The washing chemistry is chemical foam and wax, applied with high-pressure water.
Utilities
| Water pump pressure | 100 / 200 bar |
|---|---|
| Feedwater pressure | 3.5 / 4 bar |
| Air pressure | 6 bar |
| Air requirement | 20 lt/min |
| Operating voltage | 400 V |
| Installed power, washing only | 35 kW |
| Installed power, drying only | 33 kW |
| Installed power, all units | 75 kW |
Pumps and pressure

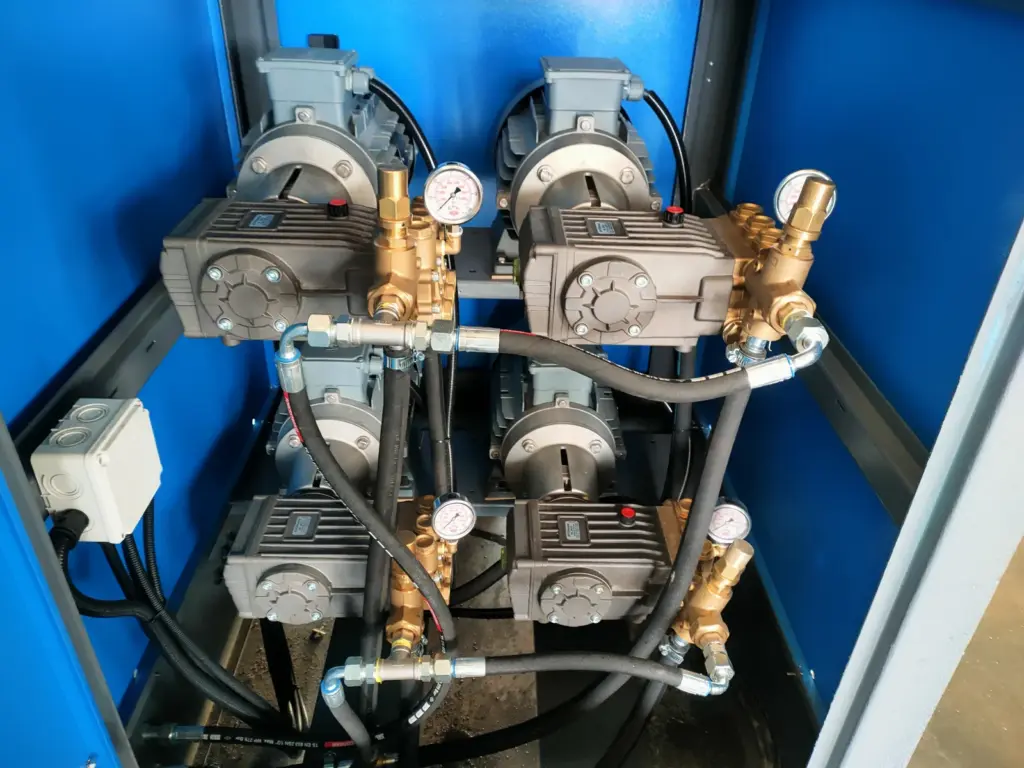

High-efficiency piston-type jet pumps deliver the wash water. They are mounted on a special chassis inside a protected cabin. The pump is specified at 100 or 200 bar.

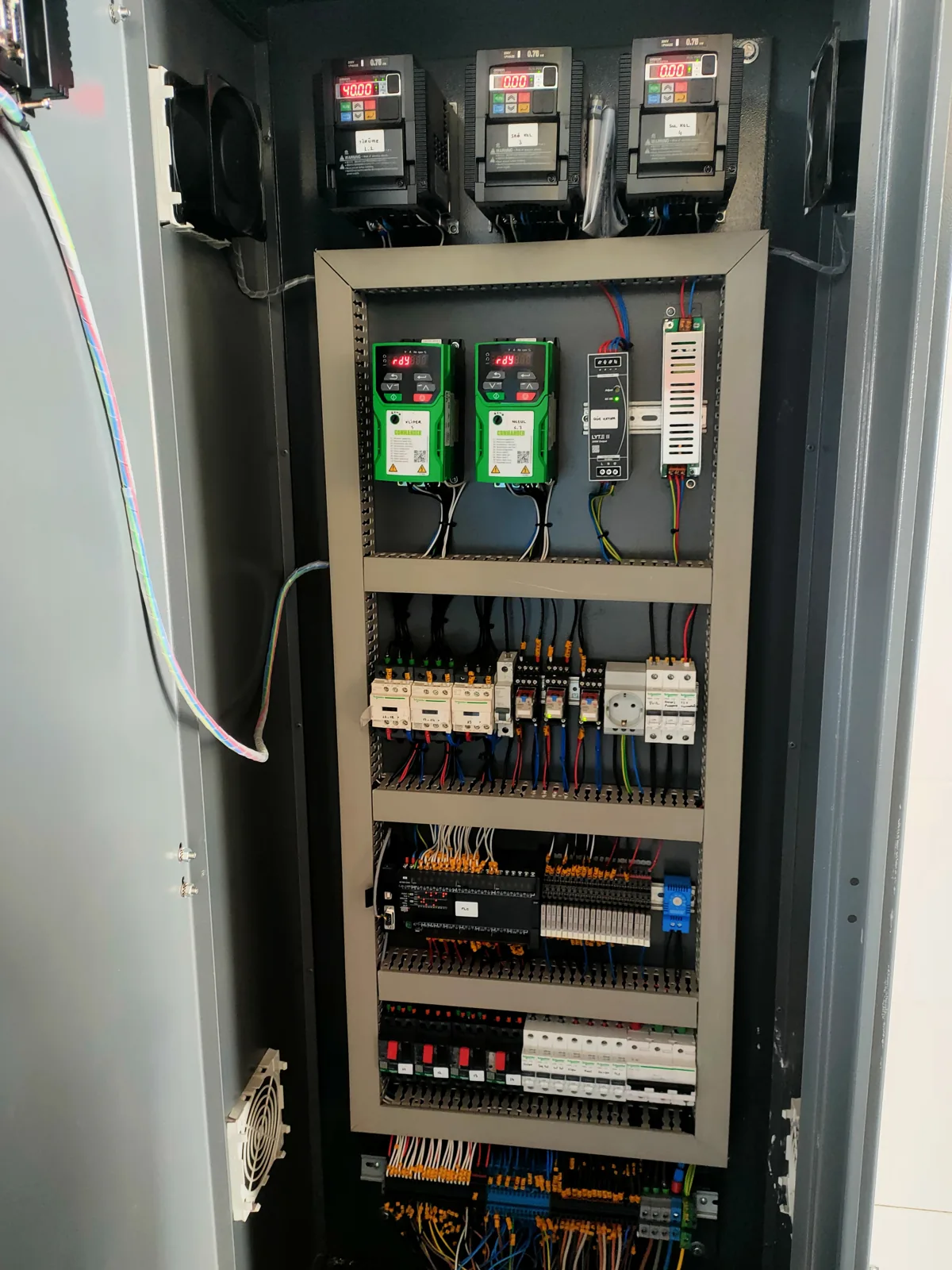

The nozzles produce a vibrating, pulsating jet, and a pressure adjustment valve sets the working pressure. Inverters control every movement of the machine, with speed options, and Europe Makine credits them with significant energy savings. A PLC runs the automation across the various washing programs.
The two installed pressures serve different jobs on the site. Feedwater comes in at 3.5 / 4 bar, and the pump raises it to 100 or 200 bar at the nozzles. Compressed air at 6 bar and 20 lt/min serves the machine alongside the water supply.
Consumption per vehicle
| Water consumption | 18-250 lt/vehicle |
|---|---|
| Electricity | 0.75 / 2.50 kW/vehicle |
| Chemical foam | 20-30 gr/vehicle |
| Wax | 20 gr/vehicle |
Running and upkeep
Water use is published as a range, 18-250 lt per vehicle, and electricity as 0.75 / 2.50 kW per vehicle. Foam use is 20-30 gr and wax use 20 gr per vehicle.
Europe Makine describes the ACROBAT 2X as low in operating and maintenance costs. All metal parts are hot-dip galvanized and finished with electrostatic paint, and the machine is covered by a 12-month warranty.
Questions and answers
- How many cars an hour does the ACROBAT 2X wash?
- Europe Makine gives the operation time with the proforma quotation. Ask for it when you request one.
- Can I download the full ACROBAT 2X specification sheet?
- Yes. The ACROBAT 2X page on europemakine.com offers a specification sheet (439 KB) and a brochure (2.2 MB).
- Which pump pressure should I choose?
- The ACROBAT 2X is built with a 100 or 200 bar water pump. Europe Makine sets the pump with the rest of the specification in the proforma quotation.
- What feedwater pressure does it need?
- 3.5 / 4 bar at the inlet, with compressed air at 6 bar and 20 lt/min.
- How much power does drying add?
- Drying alone has 33 kW installed. Washing alone has 35 kW, and the full machine with all units has 75 kW.
