Installing a touchless car wash

An ACROBAT 2X needs a bay, a 400 V supply, feedwater, compressed air and drainage. Europe Makine builds the machine, ships it, installs it and services it from Greenacres, Florida.

Talk to Europe Makine

Sheet
03 / 04
Subject
Site and installation
Supplier
europemakine.com

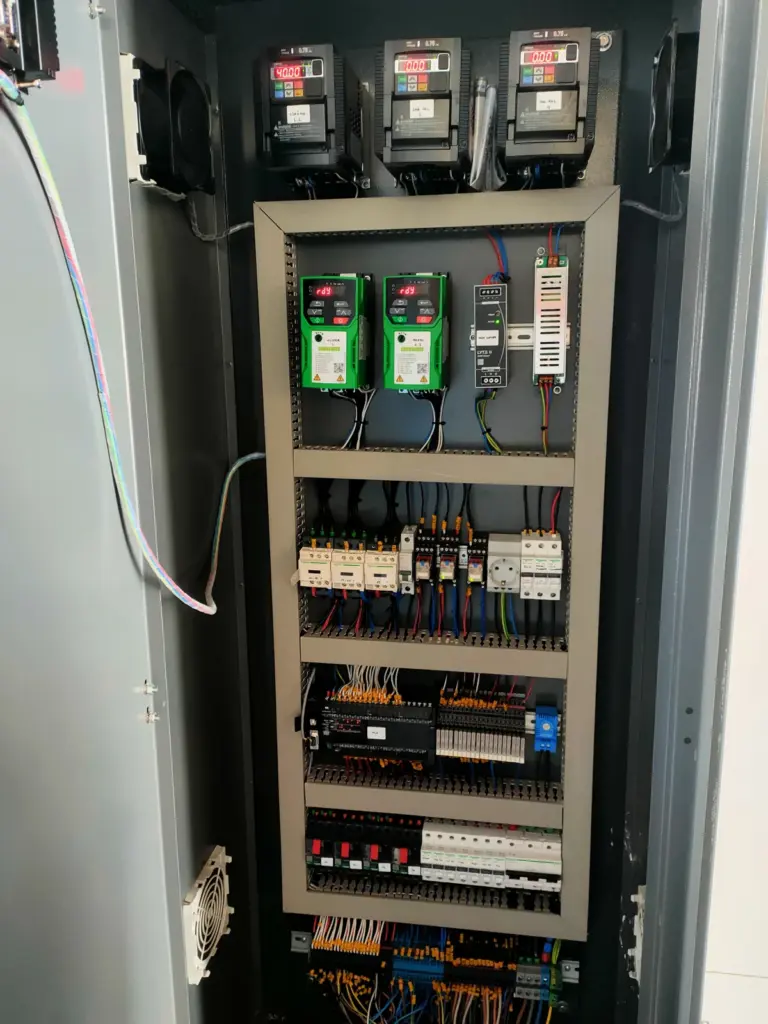

Open grey control cabinet with three drive units at the top and shelves of relays, breakers and terminal blocks below

What the bay must hold

The machine frame is at most 4.20 m wide and 3.20 m high. Plant length runs from 6.5 to 15 m and Europe Makine specifies it for each site, so the bay dimensions shape the machine you receive.

Europe Makine says the ACROBAT 2X can be installed even in the tightest spaces. It is modular, and the largest vehicle it washes is 2.20 m high and 2.20 m wide.

Feedwater arrives at 3.5 / 4 bar, and the high-pressure pump raises it to 100 or 200 bar for the jets. Europe Makine designs and manufactures in its own 1,500 m² enclosed facility, and every machine runs under PLC control.

In-bay automatic, plan view Plan of a wash bay. The vehicle drives in and stops. A gantry carrying side and top brushes runs on two rails along the bay, travelling forward and back over the parked vehicle. A control cabinet sits outside the bay wall. Vehicle, parked Gantry travel, forward and back Entry Exit Rails Gantry with side and top brushes Control cabinet
Fig. 1 Plan of a touchless in-bay rollover: the vehicle stands still while the bridge and its two arms travel over it.

Utilities to plan for

Operating voltage 400 V
Installed power, all units 75 kW
Feedwater pressure 3.5 / 4 bar
Air pressure 6 bar
Air requirement 20 lt/min
Drain requirements Confirmed at the proforma stage

Source: europemakine.com/systems/acrobat-2x/

From enquiry to a working bay

  1. Proforma quotation

    Europe Makine prices the ACROBAT 2X by proforma quotation at no charge. Drain requirements are confirmed at this stage, and plant length is specified for the site.

  2. Manufacture

    The machine is built in Europe Makine's own 1,500 m² facility. All metal parts are hot-dip galvanized and finished with electrostatic paint.

  3. Shipping

    Europe Makine ships its car wash systems door to door.

  4. Installation

    The machine is delivered and installed. US installation runs from the Europe Makine base in Greenacres, Florida.

  5. Service

    After-sales service comes from the same base, with its service technicians and spare parts stock. The warranty runs for 12 months.

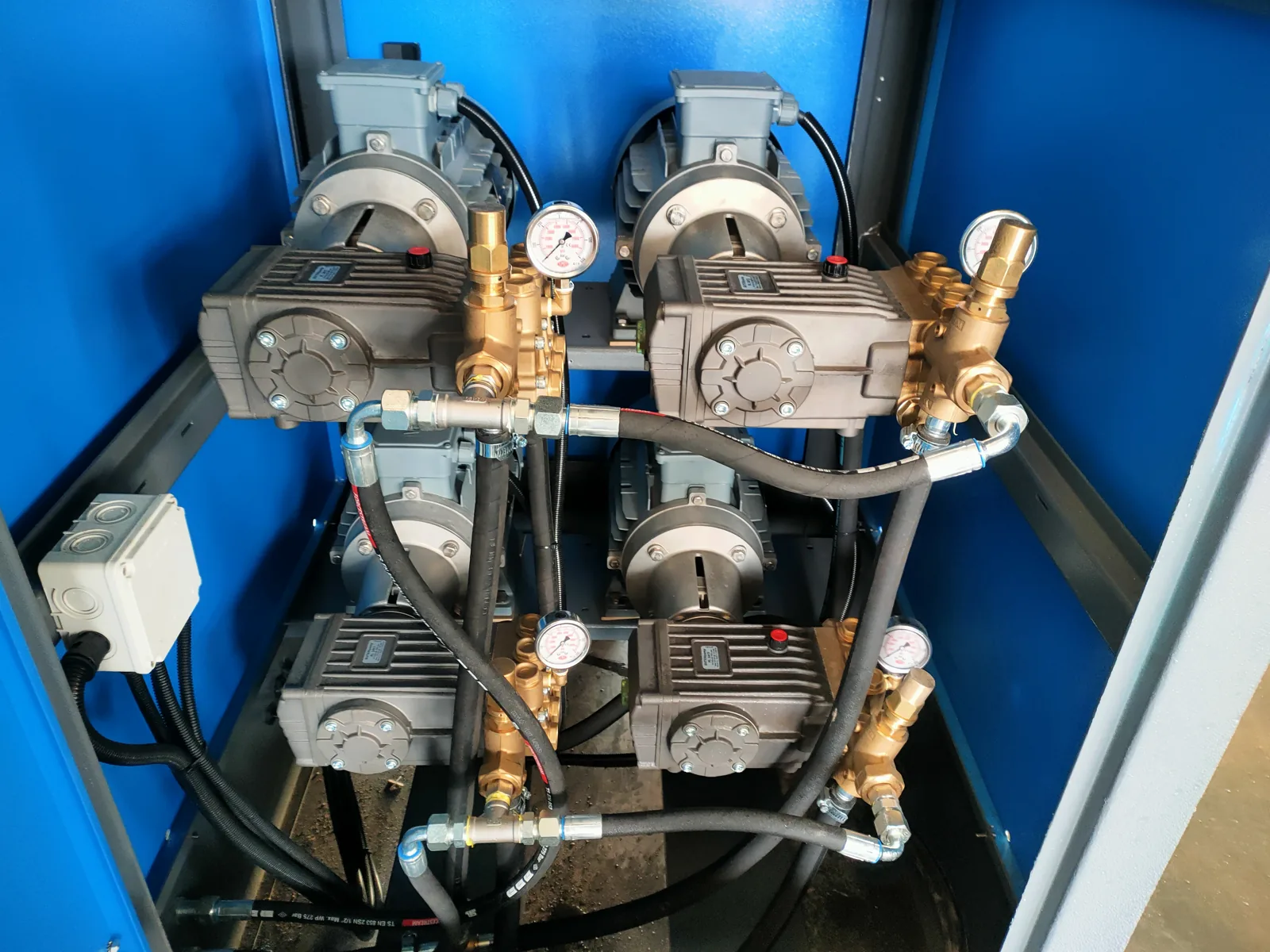

Four high-pressure pump heads with pressure gauges and braided hoses mounted in a blue cabin
Fig. 2 The ACROBAT 2X pump cabin, with four piston-type pump heads.

Service from Greenacres, Florida

Europe Makine's US company installs and services its machines from its plant at 6741 S Military Trl, Greenacres, Florida. Technicians work from that plant, and the parts for your machine are stocked on the same site.

Florida sites in Orlando, Tampa, Boca Raton and Port St. Lucie run Europe Makine wash equipment. The company's US reference site is Ali's Car Wash in Ocala, a conveyor tunnel that Europe Makine built, installed and operates.

The quotation, shipping, installation and service all run through one company. Europe Makine has over 30 years of experience in the production, sales and after-sales service of automatic car wash machines, and it can be reached on +1 561 825 7363 or info@europemakine.com.

Questions and answers

Can the ACROBAT 2X go into an existing bay?
Europe Makine says it can be installed even in the tightest spaces. Plant length is specified for each site, between 6.5 and 15 m.
Does a touchless bay need compressed air?
Yes. The ACROBAT 2X needs air at 6 bar, with a requirement of 20 lt/min.
What electrical supply does the ACROBAT 2X use?
It runs on 400 V, with 75 kW installed across all units.
When are the drains specified?
Europe Makine confirms drain requirements at the proforma stage.
What warranty comes with the machine?
The ACROBAT 2X carries a 12-month warranty, with service from Greenacres, Florida.

Plan the installation with Europe Makine

Plan your touchless bay with Europe Makine

Ask for a proforma quotation at no charge. Europe Makine specifies plant length for your site and confirms drain requirements.
